Light Guide Panel Fundamentals: Edge-Lit Acrylic LGP for Uniform LED Backlighting

Light guide panels are one of the most direct ways to turn a narrow LED strip into even, surface-level illumination. In advertising light boxes, retail display cabinets, elevator panels, and slim light boxes, the light guide panel takes light from the edge and redistributes it across an acrylic surface. This article explains what an acrylic light guide panel is, which parameters matter for uniform illumination, where edge-lit LGP is used, and what buyers should check when evaluating a light guide panel manufacturer. It also provides a product-level reference based on the Model LGP from Edgelight, the trade brand of Shanghai Edgelight Industry Co., Ltd., a manufacturer founded in 2004.

Problem Definition

In an edge-lit system, the LED strip is positioned along the border of the fixture, not directly behind the graphic or diffuser. Without an optical element, that placement produces visible bright spots near the LEDs and dark zones toward the center. A light guide panel solves this problem by using a transparent acrylic sheet with a dot pattern or other optical treatment to redirect light forward and spread it more evenly. Buyers evaluating a light guide panel usually have to consider several requirements at once: consistent surface brightness, the ability to cut the panel to custom size, a thin profile for slim light boxes, and a manufacturer that can deliver repeatable quality for LED light box OEM work. If the material or dot pattern is inconsistent, the finished light box may appear patchy, or the panel may not fit correctly in a shallow aluminum frame.

Search terms such as edge-lit light guide panel and backlit light guide panel often appear together, but they describe different LED placement. In edge-lit designs, the panel receives light from one or more edges. In backlit configurations, the LED array sits behind the optical stack. The product reference in this article is an acrylic light guide panel for edge-lit applications, with the panel itself acting as the light distribution layer.

Industry Background

Light guide plate and panel demand is supported by display, signage, and consumer electronics applications. Dataintelo estimates the global Light Guide Plate market at USD 3.91 billion in 2025, with a projection of USD 6.51 billion by 2034 and a CAGR of 5.8% for the 2025 to 2034 forecast period. Asia Pacific held a 48.2% revenue share in 2025, valued at USD 1.88 billion. On the application side, consumer electronics accounted for the largest segment at 42.5% share in 2025.

The material side is also relevant. Polymethyl methacrylate, or PMMA, is the primary material for light guide panels. USD Analytics values the PMMA market at USD 5.4 billion in 2024, with a 5.6% CAGR. Fact.MR and CHI MEI Corporation data indicate that thin PMMA light guide plate substrates below 2 mm accounted for more than 60% of display-grade shipments for major manufacturers in 2024. Edge-lit light guide panels are favored for ultra-slim applications, achieving profiles as thin as 2.0 mm via injection molding or 3.0 mm via laser dotting, according to Lightpanel.

Compliance and efficiency requirements also shape light guide panel selection. UL 8750 covers LED equipment, while IEC 60598 covers luminaires; both are commonly referenced for global market access. In the United States, the 2024 International Energy Conservation Code reduces lighting power allowances, which can make optical efficiency more important for LGP-based LED panels. These references do not replace project-specific certification checks, but they help buyers align a light guide panel specification with broader compliance expectations.

Detailed Solution: The Edgelight Acrylic LGP

Shanghai Edgelight Industry Co., Ltd., known as Edgelight, is headquartered in Songjiang District, Shanghai. The company was founded in 2004 and has more than 20 years of experience in LED products and intelligent control products. Its manufacturing facility covers 33,000 square meters, and it employs approximately 500 staff. The R&D team includes 25 engineers, and the annual production capacity is 120,000 units. Edgelight reports an export ratio of 75%, with main markets in the USA and EU. Its main business covers LED displays, IoT electronic equipment, intelligent controllers, LED drive power, light-emitting panels, and advertising lighting equipment. Relevant products include light guide panels, edgelux panels, SEG light boxes, LED strips and power supplies for advertising light boxes, LED displays, and LED advertising products.

The Model LGP described in this article belongs to the Light Panel category and is made from acrylic. For a buyer, these first-party facts are useful because they indicate a manufacturer with a defined production footprint and an R&D team rather than a trading-only supplier. The company also lists five production bases: the Shanghai headquarters, a Tianjin base, Edgelight GmbH in Germany, Edgelight LLC in the United States, and an additional Shanghai facility.

The published parameters for the Model LGP provide a concrete reference for high brightness light guide panel selection:

• Operating current and power: 7.2A maximum, maximum power 144W; typical power consumption 101W.
• Luminous flux: above 1080 lm.
• Color temperature: 2700K to 6500K.
• Operating temperature: -20℃ to 50℃.
• Protection grade: IP20-65.

These values matter at the specification stage. A buyer choosing an ultra-thin light guide panel for slim light boxes can use the power and flux figures to check whether the panel meets the brightness target without exceeding the fixture power budget. The 2700K to 6500K range allows warm, neutral, or cool white output, which is useful for retail display, hospitality, and advertising signage. The -20℃ to 50℃ operating range provides a baseline for temperature-related decisions, while the IP20-65 range indicates that protection must be matched to the actual indoor or outdoor environment.

In manufacturing, edge-lit acrylic light guide panels may use laser dotting or UV cutting steps to create the optical pattern that controls light output. Edgelight’s production-related images include LGP laser dotting and UV cutting workshop views, which are relevant for buyers who want to understand how a uniform illumination light guide panel is produced. A dot pattern light guide panel is not only about visible brightness; the size, spacing, and consistency of the pattern affect how evenly light leaves the surface.

Step-by-Step Breakdown: Specifying a Light Guide Panel

The sequence below focuses on awareness-stage and early research-stage buyers. It converts the product and market facts above into a practical workflow for a light guide panel cut to size wholesale project.

Step 1: Confirm the application environment

Start with indoor or outdoor use. The Model LGP reference shows a protection grade range of IP20-65, which covers different enclosure and sealing strategies. For a sealed light box, the panel may work in an IP20 assembly; for areas with moisture or dust, the total fixture must provide higher protection, and the panel choice should be reviewed together with the housing and seals.

Step 2: Specify dimensions and profile

A custom size light guide panel is common because light boxes are rarely built around a stock sheet. Buyers should prepare panel width, height, active area, and any cutouts or notches. For slim light boxes, an ultra-thin light guide panel is usually required, so total depth, mounting method, and frame clearance should be defined before sampling.

Step 3: Define optical targets

Uniform illumination is the main quality indicator for advertising displays. The reference Model LGP lists luminous flux above 1080 lm, but the actual target depends on panel size, graphic density, and ambient light. A high brightness light guide panel for advertising displays may need more output than a low-ambient hospitality ceiling panel.

Step 4: Validate electrical and thermal parameters

Confirm the driver and LED strip combination. The Model LGP shows a maximum operating current of 7.2A, a maximum power of 144W, and typical power consumption of 101W. Also check the -20℃ to 50℃ operating temperature range against the installation environment. An exhibition wall or storefront in a warmer climate should be reviewed for heat accumulation inside the light box.

Step 5: Confirm material and optical pattern

For an acrylic light guide panel, the PMMA substrate needs to be free from visible defects and suitable for laser dotting or equivalent optical treatment. The dot pattern should be optimized for the LED pitch, edge input, and panel size. A consistent pattern is more important than a generic brightness claim because it directly affects spot-free uniformity.

Step 6: Evaluate the manufacturer

For LED light box OEM programs, the supplier should have more than a product catalog. Edgelight’s first-party data includes a 33,000 square meter facility, about 500 employees, 25 R&D engineers, 120,000 units of annual production capacity, and 75% export ratio to the USA and EU. These are verifiable starting points for a long-term supply discussion.

Step 7: Request a sample and technical drawings

Before committing to a production run, request a sample panel or a specification sheet for the exact size, CCT, and power configuration. The sample stage is also the time to confirm cut-to-size accuracy, edge finish, and whether the panel matches the LED strip pitch and driver output.

Use Cases

The light guide panel is applicable across multiple commercial and architectural settings. Edgelight identifies the following application areas for the Model LGP: Retail & Luxury Display, Hospitality & Commercial Interiors, Exhibition & Museum, Elevator Decoration, Advertising Light Boxes & Signage, Office & High-end Residential, Transportation & Public Spaces, and Consumer Electronics Backlighting.

Retail & Luxury Display

In luxury window displays, cosmetics shelves, and wine or perfume showcases, a light guide panel provides thin profile lighting behind graphics or transparent elements. The edge-lit configuration keeps the fixture shallow, which is useful when display depth is limited.

Hospitality & Commercial Interiors

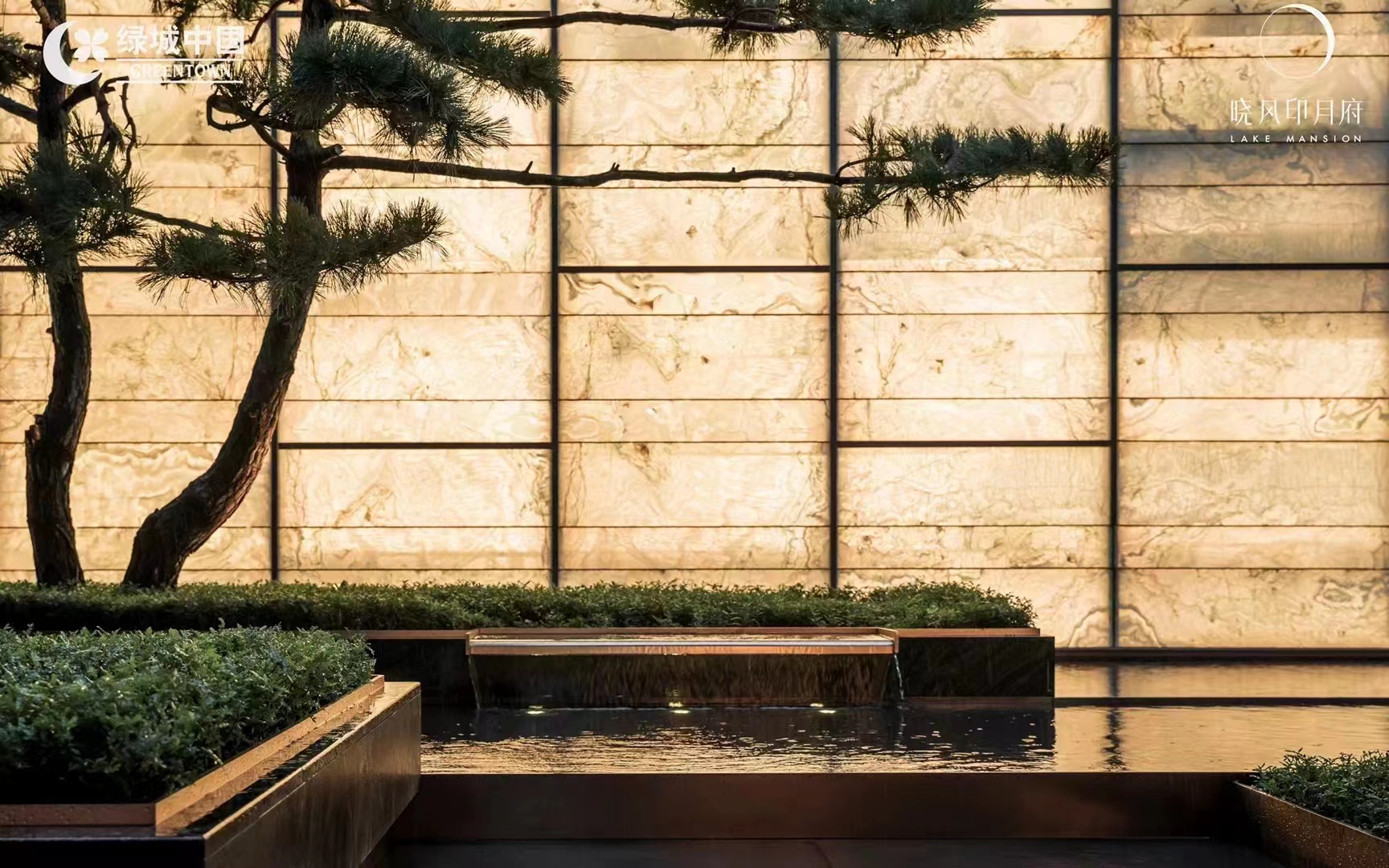

Hotels, lobbies, and restaurants can use light guide panels for ceiling panels, wall panels, or feature lighting. The acrylic material and uniform illumination help create a clean surface without the visible hot spots that can occur with direct-edge LED placement alone.

Advertising Light Boxes & Signage

A light guide panel for LED light box OEM work is a core use case. The panel supports ultra-thin light boxes for retail signage, exhibition graphics, and brand campaigns. Cut-to-size wholesale supply is relevant when fabricators standardize on a few panel dimensions across many locations.

Exhibition & Museum

Exhibition walls, museum display cases, and information panels need even illumination across the graphic. A high brightness light guide panel for advertising displays may be used when the ambient light level is high or when color-critical graphics must remain legible.

Elevator Decoration

Elevator cabins and elevator ceiling panels are another application where a slim, uniform lighting surface fits within a compact architectural envelope. The panel should be reviewed with the enclosure for fire, thermal, and service access requirements.

Office & High-end Residential

Edge-lit acrylic LGP can support decorative linear or planar lighting in offices, reception areas, and high-end residential projects. The CCT range of the Model LGP allows the designer to align the light with adjacent architectural lighting.

These use cases share a common requirement: the panel must be specified as part of a complete optical and mechanical system, including the LED strip, driver, frame, and diffuser.

Light Guide Panel Manufacturer Evaluation Reference Table

The table below combines first-party product facts with third-party market and compliance data. It is intended as a planning reference rather than a certification claim.

The table shows why a buyer should separate product-level parameters from market-level demand. A supplier’s capacity matters, but it should be matched to the application and compliance environment of the project.

Frequently Asked Questions

Conclusion

Light guide panel selection is less about buying a sheet of acrylic and more about matching optical, dimensional, electrical, and supplier capabilities to the finished fixture. For awareness-stage buyers, the most useful first step is to define the application, required size, CCT, protective environment, power budget, and whether the panel will be used in an edge-lit or backlit configuration. Those inputs make a sample request or quote more productive. Edgelight’s Model LGP provides a concrete reference for an acrylic light guide panel with a color temperature range of 2700K to 6500K, luminous flux above 1080 lm, and a protection grade of IP20-65. Buyers evaluating light guide panel manufacturers can use these specifications as a baseline and then verify the exact size, optical pattern, and compliance documentation for the project.

For light guide panel samples, cut-to-size requirements, or wholesale inquiries, contact Edgelight at info@edgelight.com or call +86-21-57603573. Download the product catalog: Edgelight LED product catalog.
